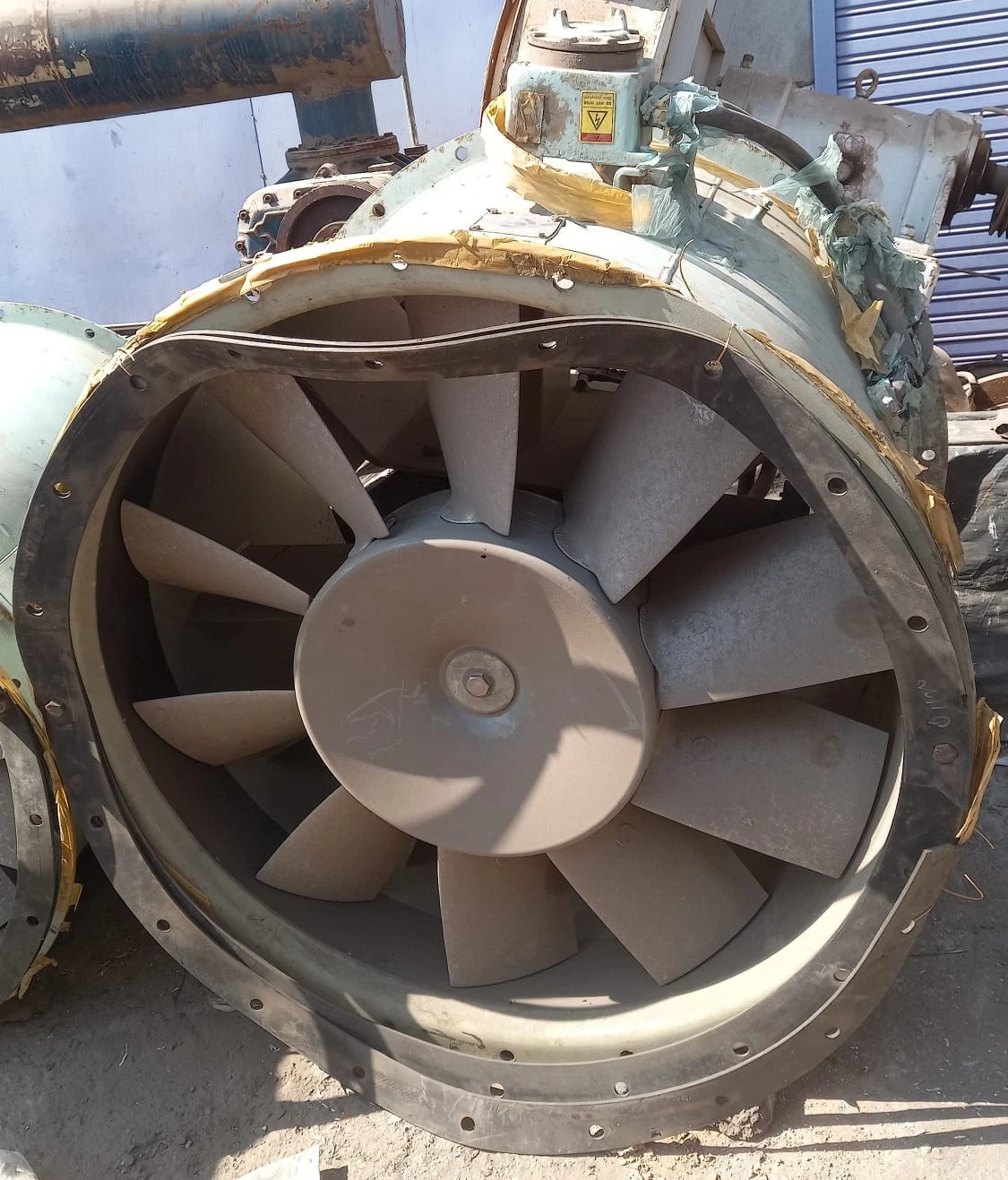

Hi Air Korea Marine Fan Blower Type AWA-1120/500 22 kW 67,200 M³/H

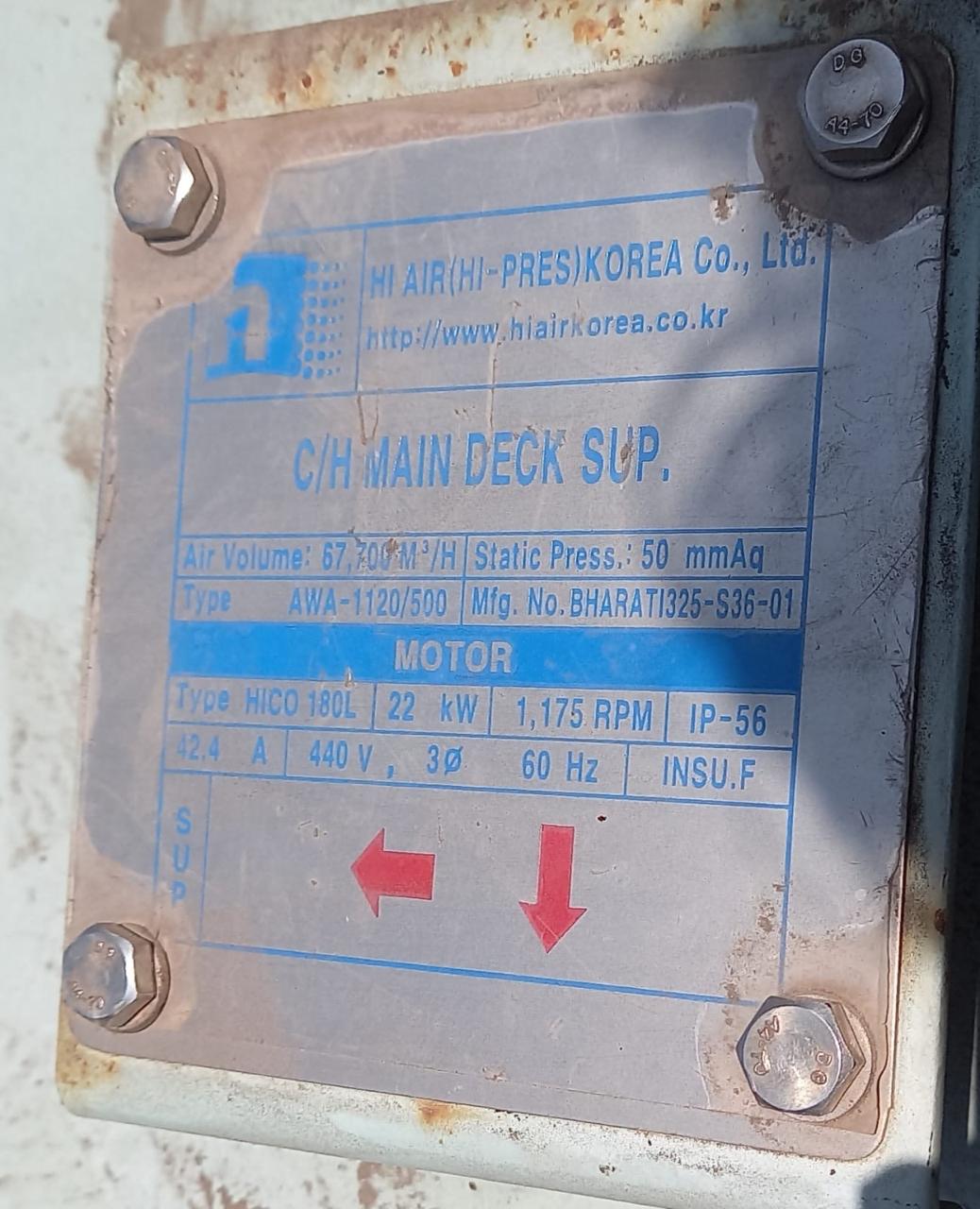

Hi Air Korea Marine Fan Blower Type AWA-1120/500 22 kW 67,200 M³/H - Image 2

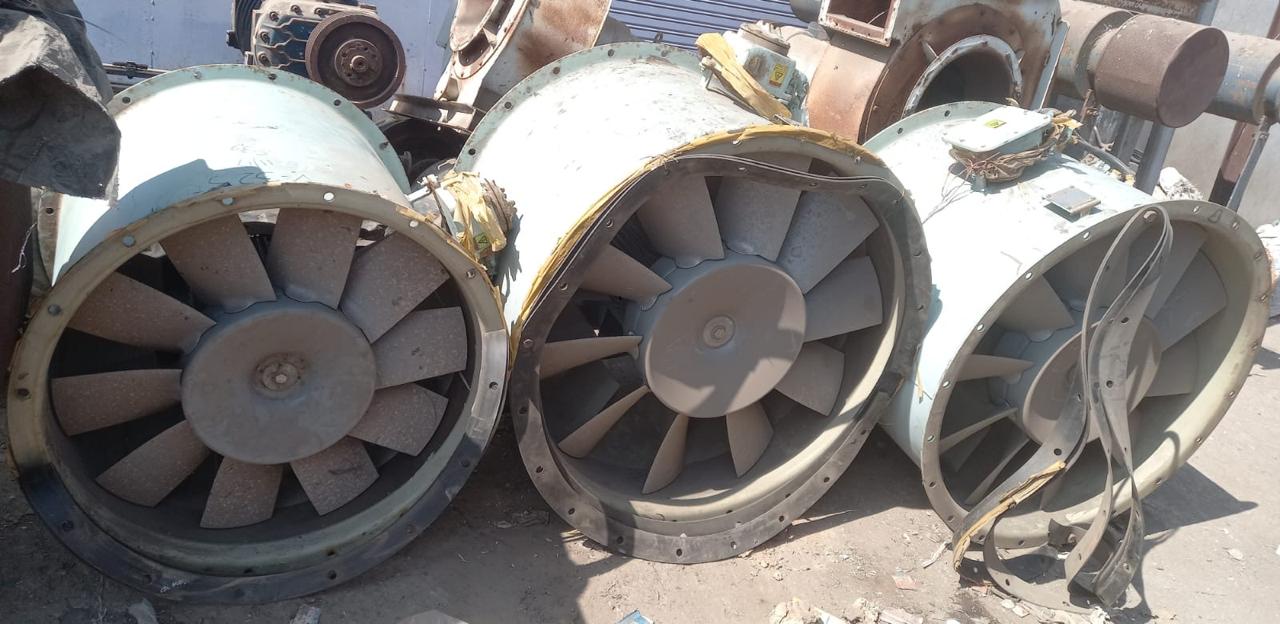

Hi Air Korea Marine Fan Blower Type AWA-1120/500 22 kW 67,200 M³/H - Image 3

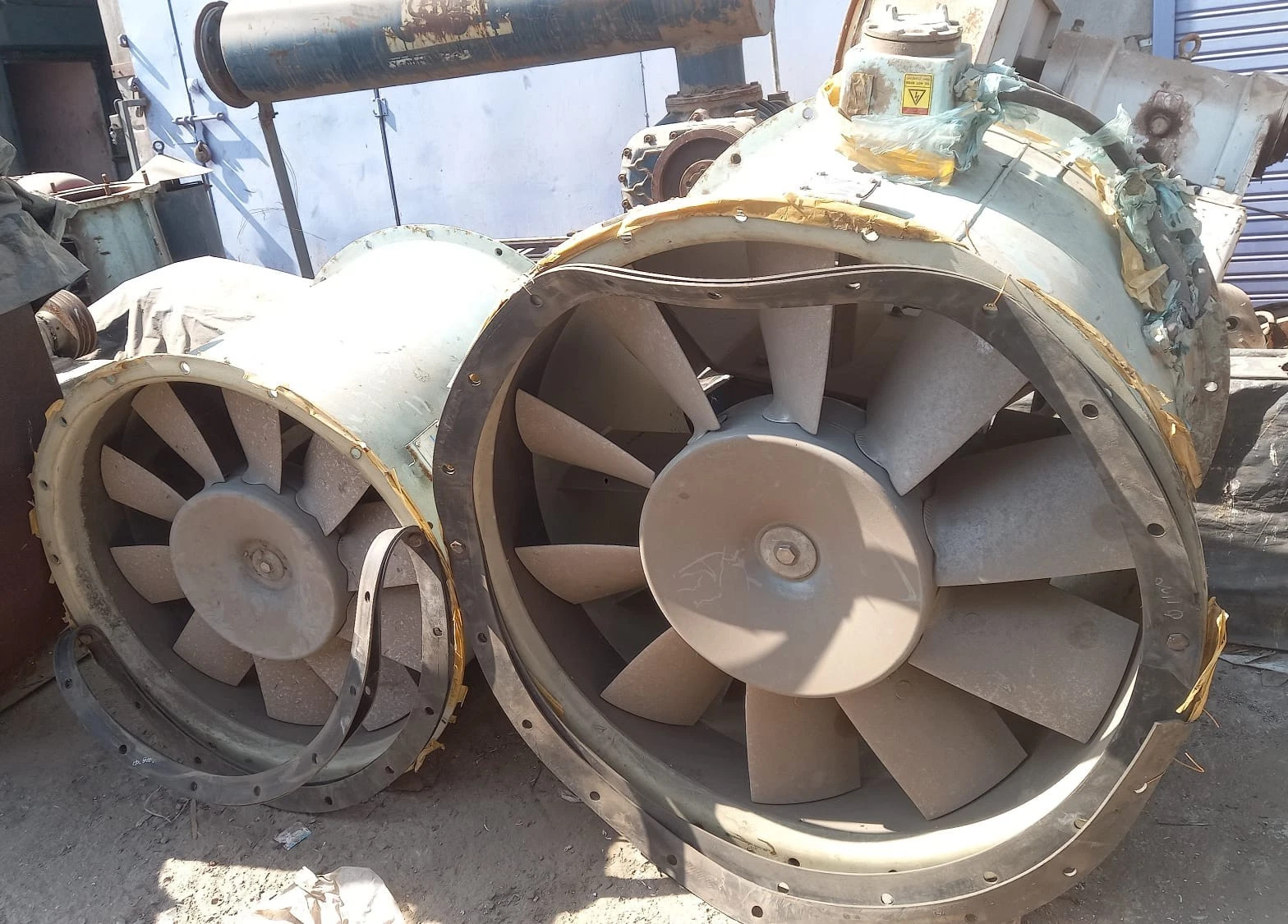

Hi Air Korea Marine Fan Blower Type AWA-1120/500 22 kW 67,200 M³/H - Image 4

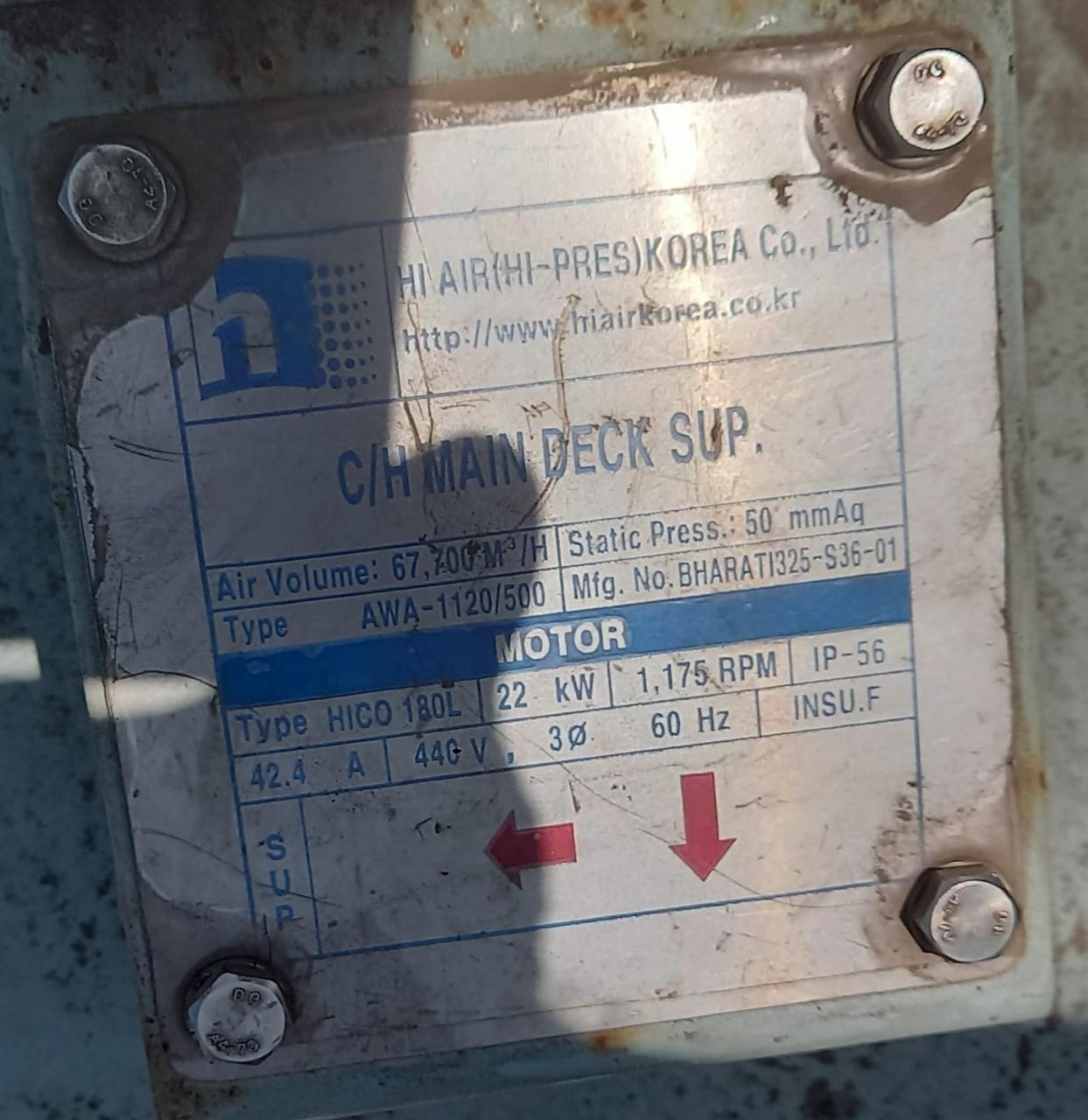

Hi Air Korea Marine Fan Blower Type AWA-1120/500 22 kW 67,200 M³/H - Image 5

Hi Air Korea Marine Fan Blower Type AWA-1120/500 22 kW 67,200 M³/H

Manufacture: HI AIR (HI-PRES) KOREA Co., Ltd

Application: Cargo Hold Main Deck Supply (C/H MAIN DECK SUP.)Blower

Model/Type: AWA-1120/500

Air Volume: 67,200 M³/H

Static Pressure: 50 mmAq

Motor Type: HICO 180L

Motor Power22 kW

Speed : 1,175 RPM

Voltage / Phase440 V / 3 Phase (3Ø)

Frequency: 60 Hz

Current Rating: 42.4 A

Protection Rating: IP-56 (Weatherproof/Marine Grade)

Insulation Class: Class F
